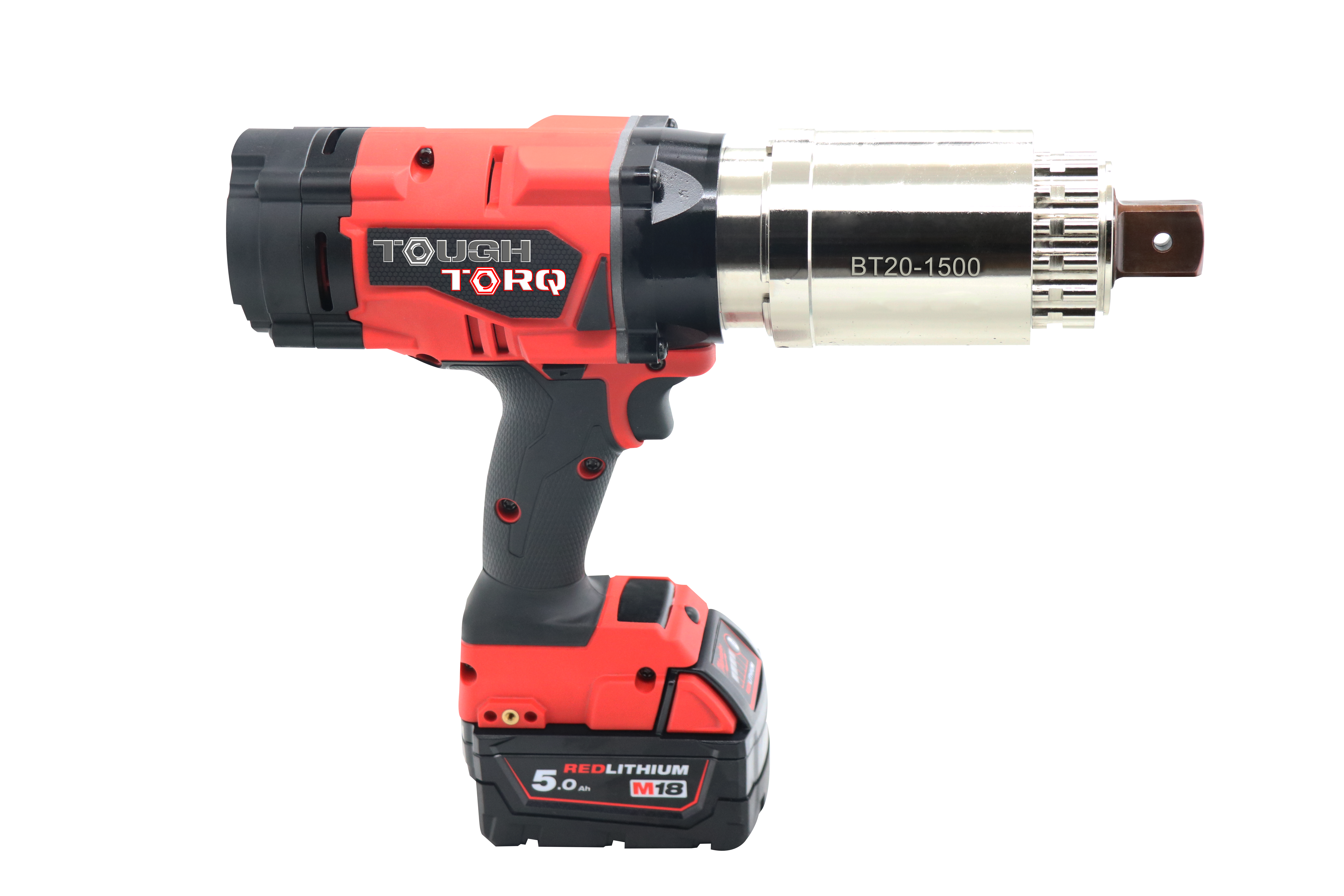

BT Series

Digital Battery
Torque Guns

ToughTorq BT Series digital battery torque guns combine cordless operation with digital torque and angle settings for installation, maintenance, shutdown, and field bolting applications.

View Technical Data Downloads Find a Distributor

Product Overview

Cordless controlled bolting

✓

Digital torque and angle settings

✓

Torque tracking capability

✓

Digital setting display

✓

Tightening and loosening repeatability under 5%

✓

Quick-charge function under 60 minutes

✓

Digital torque control system

✓

Brushless motor

✓

Heavy-duty transport and storage case

Model Specifications

BT Series technical data

Model-level torque, drive, dimensional, speed, and weight data are maintained from the ToughTorq manufacturer catalog.

Model	Torque Range	Square Drive	D	L	K	Max Speed	Weight
BT05-350	74–369 ft-lb	3/4 in	2.36 in	10.63 in	9.65 in	26 rpm	9.5 lb
BT10-700	96–738 ft-lb	3/4 in	2.91 in	10.91 in	9.65 in	18 rpm	10.6 lb
BT15-1000	133–1,106 ft-lb	1 in	2.99 in	12.48 in	9.65 in	8 rpm	11.5 lb
BT20-1500	184–1,549 ft-lb	1 in	2.99 in	12.48 in	9.65 in	6 rpm	12.1 lb
BT30-2200	354–2,286 ft-lb	1 in	3.39 in	13.39 in	9.65 in	3.5 rpm	16.5 lb
BT40-2900	479–2,950 ft-lb	1 in	3.74 in	13.78 in	9.65 in	3.2 rpm	20.9 lb
BT50-3600	627–3,688 ft-lb	1-1/2 in	4.06 in	13.98 in	9.65 in	2.5 rpm	22 lb
BT60-4400	811–4,425 ft-lb	1-1/2 in	4.33 in	15.75 in	9.65 in	1.8 rpm	26.5 lb
BT80-6000	1,401–5,900 ft-lb	1-1/2 in	4.53 in	16.34 in	9.65 in	1.5 rpm	30.9 lb

Applications

Built for field bolting

Industrial maintenance

Shutdowns and turnarounds

Structural bolting

Power generation

Oil and gas

Manufacturing

Mining

Heavy equipment

Accessories & Compatibility

Complete the bolting package

Reaction arms

Battery packs

Battery chargers

Sockets

Transport cases

✓Match sockets to the listed square-drive size and fastener.

✓Select reaction equipment for the required torque and available reaction point.

Downloads

BT Series technical resources

Cutsheet

BT Series Product Cutsheet

View PDF →

Drawing

BT Series Dimension Drawing

In preparation

Manual

BT Series Operating Guide

In preparation

Distribution

Find a ToughTorq distributor

Connect with the ToughTorq distribution network for local product availability, model selection, and technical support.

Find a Distributor

Purchase, Rental, Calibration & Service

Commercial support through JAM Torque

For purchasing, rental availability, calibration, repair, and field support in JAM Torque's supported market, continue to JAMTorque.com.

Visit JAM Torque →
