Lifting & Positioning

Hydraulic Cylinders
& Rams

ToughTorq hydraulic cylinders cover general-purpose lifting, low-height applications, hollow-plunger pulling and tensioning, mechanical load holding, high-tonnage lifting, aluminum weight-sensitive applications, telescopic lifting, and stage-lift systems. Cylinder selection should be based on required capacity, stroke, collapsed height, return method, load-holding requirement, pressure, and application geometry.

View Cylinder Families Model Data Find a Distributor

Pressure Classes

700 & 1500 bar

Capacity Range

5–1000+ ton

Acting Types

Single & double

Specialty Designs

Hollow, lock nut, telescopic & more

Cylinder Families

Select the cylinder architecture

ToughTorq covers general-purpose lifting, restricted-clearance applications, pulling and tensioning, mechanical load holding, high-tonnage lifting, lightweight aluminum systems, telescopic lifting, and staged synchronized lifting.

ToughTorq general-purpose single-acting hydraulic cylinders

TTRC Series

Spring-return cylinders for lifting, pushing, positioning, and general maintenance at 700 bar.

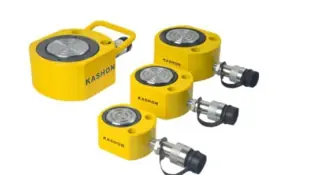

ToughTorq TTRSM low-height hydraulic cylinders

TTRSM Series

Very low collapsed-height spring-return cylinders for confined lifting applications.

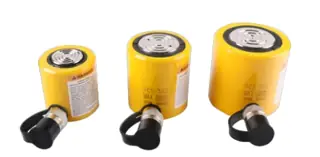

ToughTorq TTRCS low-height hydraulic cylinders

TTRCS Series

Low-profile spring-return cylinders where standard cylinder collapsed height will not fit.

ToughTorq hollow-plunger hydraulic cylinders

TTRCH Series

Hollow-center spring-return cylinders for pulling, tensioning, and pushing.

TTRRH Series

Hollow-center cylinders with hydraulic advance and controlled hydraulic return.

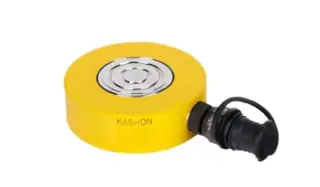

ToughTorq TTTC ultra-low-height hydraulic cylinder

TTTC Series

Ultra-low-height single-acting load-return cylinders for extremely restricted clearance.

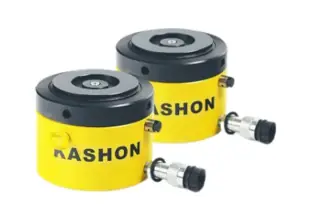

ToughTorq TTCLP pancake lock-nut hydraulic cylinders

TTCLP Series

Low-profile load-return cylinders with mechanical load holding.

TTCLL Series

High-capacity single-acting load-return cylinders with mechanical lock-nut load holding.

TTCLRG Series

High-capacity double-acting lifting cylinders with positive hydraulic retraction.

TTCLSG Series

High-capacity single-acting load-return cylinders for heavy lifting.

TTRR Series

General double-acting cylinders for positive hydraulic advance and retract.

TTRAC Series

Lightweight aluminum spring-return cylinders.

TTRAR Series

Lightweight aluminum double-acting cylinders.

TTRACH Series

Lightweight hollow-center spring-return cylinders.

TTRACL Series

Lightweight aluminum cylinders with mechanical load holding.

TTRSMB Series

Ultra-thin spring-return cylinders with extended stroke from a low closed height.

TTBRC / TTBRP Series

Spring-return hydraulic puller cylinders for controlled component removal.

TTRCD Series

Single-acting telescopic cylinders for high lift from minimal insertion clearance.

TTBLS / TTRK Series

Double-acting staged lifting cylinders for synchronized high-precision lifting.

Technical Data

Verified model specifications

Model tables below use converted manufacturer data for capacity, stroke, collapsed height, extended height, weight, and working pressure. Open a series to view its model range.

General Purpose Single Acting (39 models)

Model	Capacity	Stroke	Collapsed Height	Extended Height	Weight	Working Pressure
TTRC-50	5 ton	0.63 in	1.61 in	2.24 in	2.2 lb	10,153 psi
TTRC-51	5 ton	0.98 in	4.33 in	5.31 in	2.2 lb	10,153 psi
TTRC-53	5 ton	2.99 in	6.5 in	9.49 in	3.3 lb	10,153 psi
TTRC-55	5 ton	5 in	8.46 in	13.46 in	4.2 lb	10,153 psi
TTRC-57	5 ton	6.97 in	10.75 in	17.72 in	5.3 lb	10,153 psi
TTRC-59	5 ton	9.13 in	12.72 in	21.85 in	6.2 lb	10,153 psi
TTRC-101	10 ton	1.02 in	3.5 in	4.53 in	4 lb	10,153 psi
TTRC-102	10 ton	2.13 in	4.76 in	6.89 in	5.1 lb	10,153 psi
TTRC-104	10 ton	4.13 in	6.73 in	10.87 in	7.3 lb	10,153 psi
TTRC-106	10 ton	6.14 in	9.72 in	15.87 in	9.7 lb	10,153 psi
TTRC-108	10 ton	7.99 in	11.73 in	19.72 in	11.9 lb	10,153 psi
TTRC-1010	10 ton	10.12 in	13.74 in	23.86 in	14.1 lb	10,153 psi
TTRC-1012	10 ton	11.97 in	15.75 in	27.72 in	15 lb	10,153 psi
TTRC-1014	10 ton	14.02 in	17.72 in	31.73 in	18.1 lb	10,153 psi
TTRC-151	15 ton	0.98 in	4.88 in	5.87 in	7.3 lb	10,153 psi
TTRC-152	15 ton	2.01 in	5.87 in	7.87 in	9 lb	10,153 psi
TTRC-154	15 ton	3.98 in	7.87 in	15.79 in	11 lb	10,153 psi
TTRC-156	15 ton	5.98 in	10.67 in	16.65 in	15 lb	10,153 psi
TTRC-158	15 ton	7.99 in	12.68 in	20.67 in	18.1 lb	10,153 psi
TTRC-1510	15 ton	10 in	14.69 in	24.69 in	20.9 lb	10,153 psi
TTRC-1512	15 ton	12.01 in	16.65 in	28.66 in	24 lb	10,153 psi
TTRC-1514	15 ton	14.02 in	18.66 in	32.68 in	26 lb	10,153 psi
TTRC-251	25 ton	1.02 in	5.47 in	6.5 in	13 lb	10,153 psi
TTRC-252	25 ton	1.97 in	6.5 in	8.46 in	14.1 lb	10,153 psi
TTRC-254	25 ton	4.02 in	8.46 in	12.48 in	18.1 lb	10,153 psi
TTRC-256	25 ton	6.22 in	10.75 in	16.97 in	22 lb	10,153 psi
TTRC-258	25 ton	8.27 in	12.72 in	20.98 in	26.9 lb	10,153 psi
TTRC-2510	25 ton	10.28 in	14.72 in	25 in	31.1 lb	10,153 psi
TTRC-2512	25 ton	12.24 in	16.73 in	28.98 in	35.9 lb	10,153 psi
TTRC-2514	25 ton	14.25 in	18.74 in	32.99 in	39 lb	10,153 psi
TTRC-308	30 ton	8.23 in	15.24 in	23.46 in	39.9 lb	10,153 psi
TTRC-502	50 ton	2.01 in	6.93 in	8.94 in	33.1 lb	10,153 psi
TTRC-504	50 ton	3.98 in	8.94 in	12.91 in	42.1 lb	10,153 psi
TTRC-506	50 ton	6.26 in	11.1 in	17.36 in	50.9 lb	10,153 psi
TTRC-5013	50 ton	13.27 in	18.11 in	31.38 in	82.9 lb	10,153 psi
TTRC-756	75 ton	6.14 in	11.22 in	17.36 in	65 lb	10,153 psi
TTRC-7513	75 ton	13.11 in	19.37 in	32.48 in	130.1 lb	10,153 psi
TTRC-1006	100 ton	6.61 in	14.06 in	20.67 in	130.1 lb	10,153 psi
TTRC-10010	100 ton	10.24 in	17.68 in	27.91 in	160.1 lb	10,153 psi

RSM Low Height (8 models)

Model	Capacity	Stroke	Collapsed Height	Extended Height	Weight	Working Pressure
TTRSM-50	5 ton	0.24 in	1.26 in	1.5 in	2.2 lb	10,153 psi
TTRSM-100	10 ton	0.47 in	1.65 in	2.13 in	3.1 lb	10,153 psi
TTRSM-200	20 ton	0.43 in	2.01 in	2.44 in	6.8 lb	10,153 psi
TTRSM-300	30 ton	0.51 in	2.28 in	2.8 in	9.9 lb	10,153 psi
TTRSM-500	45 ton	0.63 in	2.6 in	3.23 in	15 lb	10,153 psi
TTRSM-750	75 ton	0.63 in	3.11 in	3.74 in	24.9 lb	10,153 psi
TTRSM-1000	100 ton	0.63 in	3.35 in	3.98 in	32 lb	10,153 psi
TTRSM-1500	150 ton	0.63 in	3.94 in	4.57 in	58 lb	10,153 psi

RCS Low Height (5 models)

Model	Capacity	Stroke	Collapsed Height	Extended Height	Weight	Working Pressure
TTRCS-101	10 ton	1.5 in	3.46 in	4.96 in	9 lb	10,153 psi
TTRCS-201	20 ton	1.77 in	3.86 in	5.63 in	11 lb	10,153 psi
TTRCS-302	30 ton	2.44 in	4.61 in	7.05 in	15 lb	10,153 psi
TTRCS-502	50 ton	2.36 in	4.8 in	7.17 in	24 lb	10,153 psi
TTRCS-1002	100 ton	2.24 in	5.55 in	7.8 in	50 lb	10,153 psi

Single-Acting Hollow Plunger (11 models)

Model	Capacity	Stroke	Collapsed Height	Extended Height	Weight	Working Pressure
TTRCH-120	13 ton	0.31 in	2.17 in	2.48 in	3.3 lb	10,153 psi
TTRCH-121	13 ton	1.65 in	4.72 in	6.38 in	6.2 lb	10,153 psi
TTRCH-1211	13 ton	1.65 in	4.72 in	6.38 in	6.2 lb	10,153 psi
TTRCH-123	13 ton	2.99 in	7.24 in	10.24 in	9.7 lb	10,153 psi
TTRCH-202	20 ton	1.93 in	6.38 in	8.31 in	17 lb	10,153 psi
TTRCH-206	20 ton	6.1 in	12.05 in	18.15 in	31.1 lb	10,153 psi
TTRCH-302	30 ton	2.52 in	7.01 in	9.53 in	24 lb	10,153 psi
TTRCH-306	30 ton	6.1 in	12.99 in	19.09 in	48.1 lb	10,153 psi
TTRCH-603	60 ton	2.99 in	9.72 in	12.72 in	61.9 lb	10,153 psi
TTRCH-606	60 ton	6.02 in	12.72 in	18.74 in	78 lb	10,153 psi
TTRCH-1003	100 ton	2.99 in	10 in	12.99 in	138.9 lb	10,153 psi

Double-Acting Hollow Plunger (10 models)

Model	Capacity	Stroke	Collapsed Height	Extended Height	Weight	Working Pressure
TTRRH-307	30 ton	7.01 in	12.99 in	20 in	46.3 lb	10,153 psi
TTRRH-3010	30 ton	10.16 in	16.97 in	27.13 in	59.5 lb	10,153 psi
TTRRH-603	60 ton	3.5 in	9.72 in	13.23 in	61.7 lb	10,153 psi
TTRRH-606	60 ton	6.54 in	12.72 in	19.25 in	77.2 lb	10,153 psi
TTRRH-6010	60 ton	10.12 in	17.24 in	27.36 in	99.2 lb	10,153 psi
TTRRH-1001	100 ton	1.5 in	6.5 in	7.99 in	72.8 lb	10,153 psi
TTRRH-1003	100 ton	2.99 in	10 in	12.99 in	134.5 lb	10,153 psi
TTRRH-1006	100 ton	6.02 in	13.46 in	19.49 in	174.2 lb	10,153 psi
TTRRH-10010	100 ton	10.12 in	18.11 in	28.23 in	233.7 lb	10,153 psi
TTRRH-1508	150 ton	7.99 in	13.74 in	21.73 in	244.7 lb	10,153 psi

Ultra Low Height 1500 Bar (8 models)

Model	Capacity	Stroke	Collapsed Height	Extended Height	Weight	Working Pressure
TTTC-00510	5 ton	0.39 in	1.18 in	1.57 in	7.9 lb	21,756 psi
TTTC-01010	10 ton	0.39 in	1.18 in	1.57 in	9 lb	21,756 psi
TTTC-02510	25 ton	0.39 in	1.18 in	1.57 in	10.1 lb	21,756 psi
TTTC-05510	50 ton	0.39 in	1.18 in	1.57 in	9.9 lb	21,756 psi
TTTC-10010	100 ton	0.39 in	1.18 in	1.57 in	11.5 lb	21,756 psi
TTTC-12010	120 ton	0.39 in	1.18 in	1.57 in	13 lb	21,756 psi
TTTC-15010	150 ton	0.39 in	1.22 in	1.61 in	18.7 lb	21,756 psi
TTTC-20010	200 ton	0.39 in	1.26 in	1.65 in	20.9 lb	21,756 psi

Pancake Lock Nut (7 models)

Model	Capacity	Stroke	Collapsed Height	Extended Height	Weight	Working Pressure
TTCLP-602	60 ton	1.97 in	4.92 in	6.89 in	33.1 lb	10,153 psi
TTCLP-1002	100 ton	1.97 in	5.39 in	7.36 in	57.3 lb	10,153 psi
TTCLP-1602	160 ton	1.77 in	5.83 in	7.6 in	97 lb	10,153 psi
TTCLP-2002	200 ton	1.77 in	6.1 in	7.87 in	125.7 lb	10,153 psi
TTCLP-2502	260 ton	1.77 in	6.26 in	8.03 in	163.1 lb	10,153 psi
TTCLP-4002	400 ton	1.77 in	7.01 in	8.78 in	295.4 lb	10,153 psi
TTCLP-5002	520 ton	1.77 in	7.56 in	9.33 in	416.7 lb	10,153 psi

Cylinder Selection

Match the cylinder to the load and available space

Required capacity

Stroke length

Collapsed height

Extended height

Single or double acting

Return method

Load-holding requirement

Available clearance

Side-load exposure

Operating pressure

Complete Hydraulic System

Match every hydraulic component

Hydraulic pumps

Hydraulic hoses

Quick couplers

Pressure gauges

Control valves

Manifolds

Saddles

Base and mounting accessories

✓Hydraulic pressure rating and connection interfaces must be compatible across the complete system.

✓Cylinder load rating, side-load limits, stroke, support surface, and reaction geometry must be respected.

✓Lock-nut cylinders mechanically support loads only when the lock nut is properly engaged according to the application procedure.

Applications

Industrial lifting, positioning, pushing & pulling

Industrial lifting

Equipment positioning

Heavy machinery maintenance

Construction and structural work

Plant shutdowns

Bridge work

Equipment installation

Controlled pushing and pulling
