700 Bar Hydraulic Hoses
General-purpose high-pressure hose assemblies for standard ToughTorq 700 bar hydraulic tooling.
Hydraulic Accessories
Hydraulic Hoses

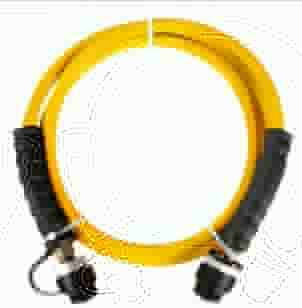

ToughTorq hydraulic hose assemblies connect pumps, tools, cylinders, pullers, flange equipment, torque wrenches, tensioners, and hydraulic nuts. The catalog includes standard 700 bar hoses and ultra-high-pressure hose families rated to 1000, 1800, and 2800 bar, with model-specific lengths and connection threads.
Hose Families
Select by working pressure and connection
Ultra-High-Pressure Hydraulic Hoses
Reinforced hose assemblies for ultra-high-pressure tensioning, hydraulic nut, and specialty hydraulic systems.
Technical Data
Verified hose specifications
700 Bar Hydraulic Hoses
| Model | Working Pressure | Length | Connection | ID / Construction | Weight |
|---|---|---|---|---|---|
| HX-6-2SP-2 | 700 bar10,153 psi | 1.8 m5.9 ft | NPT 3/8" | 6.4 mm ID | 2.2 lb |
| HX-6-2SP-3 | 700 bar10,153 psi | 3 m9.8 ft | NPT 3/8" | 6.4 mm ID | 3.3 lb |
| HX-6-2SP-5 | 700 bar10,153 psi | 5 m16.4 ft | NPT 3/8" | 6.4 mm ID | 5.5 lb |
| HX-6-2SP-6 | 700 bar10,153 psi | 6 m19.7 ft | NPT 3/8" | 6.4 mm ID | 6.6 lb |
| HX-6-2SP-10 | 700 bar10,153 psi | 10 m32.8 ft | NPT 3/8" | 6.4 mm ID | 11 lb |
| HX-6-2SP-15 | 700 bar10,153 psi | 15 m49.2 ft | NPT 3/8" | 6.4 mm ID | 15.4 lb |
Ultra-High-Pressure Hydraulic Hoses
| Model | Working Pressure | Length | Connection | ID / Construction | Weight |
|---|---|---|---|---|---|
| JH7418 | 1,000 bar14,504 psi | 1.8 m5.9 ft | 1/4" NPT | Four-layer design with two high-strength steel wire braids | — |
| JH7430 | 1,000 bar14,504 psi | 3 m9.8 ft | 1/4" NPT | Four-layer design with two high-strength steel wire braids | — |
| JH7445 | 1,000 bar14,504 psi | 4.5 m14.8 ft | 1/4" NPT | Four-layer design with two high-strength steel wire braids | — |
| JH7460 | 1,000 bar14,504 psi | 6 m19.7 ft | 1/4" NPT | Four-layer design with two high-strength steel wire braids | — |
| JH7490 | 1,000 bar14,504 psi | 9 m29.5 ft | 1/4" NPT | Four-layer design with two high-strength steel wire braids | — |
| JH74120 | 1,000 bar14,504 psi | 12 m39.4 ft | 1/4" NPT | Four-layer design with two high-strength steel wire braids | — |
| JH7818 | 1,000 bar14,504 psi | 1.8 m5.9 ft | 3/8" NPT | Four-layer design with two high-strength steel wire braids | — |
| JH7830 | 1,000 bar14,504 psi | 3 m9.8 ft | 3/8" NPT | Four-layer design with two high-strength steel wire braids | — |
| JH7845 | 1,000 bar14,504 psi | 4.5 m14.8 ft | 3/8" NPT | Four-layer design with two high-strength steel wire braids | — |
| JH7860 | 1,000 bar14,504 psi | 6 m19.7 ft | 3/8" NPT | Four-layer design with two high-strength steel wire braids | — |
| JH7890 | 1,000 bar14,504 psi | 9 m29.5 ft | 3/8" NPT | Four-layer design with two high-strength steel wire braids | — |
| JH78120 | 1,000 bar14,504 psi | 12 m39.4 ft | 3/8" NPT | Four-layer design with two high-strength steel wire braids | — |
| JH8430 | 1,800 bar26,107 psi | 3 m9.8 ft | G1/4" | Four-layer design with two high-strength steel wire braids | — |
| JH8460 | 1,800 bar26,107 psi | 6 m19.7 ft | G1/4" | Four-layer design with two high-strength steel wire braids | — |
| JH8490 | 1,800 bar26,107 psi | 9 m29.5 ft | G1/4" | Four-layer design with two high-strength steel wire braids | — |
| JH9430 | 2,800 bar40,611 psi | 3 m9.8 ft | G1/4" | Four-layer design with two high-strength steel wire braids | — |
| JH9460 | 2,800 bar40,611 psi | 6 m19.7 ft | G1/4" | Four-layer design with two high-strength steel wire braids | — |
| JH9490 | 2,800 bar40,611 psi | 9 m29.5 ft | G1/4" | Four-layer design with two high-strength steel wire braids | — |
Hose Selection
Match every connection in the hydraulic system
Maximum working pressure
Required length
End-fitting thread
Pump connection
Tool connection
Application environment
Temperature exposure
Coupler standard
System Compatibility
✓700 bar HX hose assemblies are intended for standard 700 bar hydraulic tooling.
✓JH ultra-high-pressure hose families must be paired with components rated for the published 1000, 1800, or 2800 bar working pressure.
✓Connection thread and coupler selection must match both ends of the hydraulic system.
