Controlled Axial Loading

Hydraulic Nuts

ToughTorq hydraulic nuts use hydraulic pressure to apply controlled axial force for large-fastener loading and bearing installation or removal. The range includes upper-locking hydraulic nuts for mechanically retained load and ultra-high-pressure bearing-assembly nuts for shafts, tapered seats, bushings, flywheels, propellers, and rotating-equipment maintenance.

Upper-Locking DataBearing Nut DataDownloadsFind a Distributor

Hydraulic Preload

Apply controlled force without relying only on torque

Hydraulic nuts convert hydraulic pressure into axial force. Depending on the design, that force can be mechanically retained for a bolted joint or used to move bearings and other press-fit components into or out of position.

✓

Controlled axial loading through hydraulic pressure

✓

Upper-locking models mechanically retain load after pressurization

✓

Bearing-assembly models simplify installation and removal on tapered shafts and bushings

✓

Ultra-high-pressure hydraulic operation

✓

Quick-connect hydraulic interfaces

✓

Wide metric and trapezoidal thread coverage

✓

Application-specific sealing and washer options

✓

Designed for heavy industrial maintenance and assembly

Upper-Locking Series

Hydraulic loading with mechanical retention

TTNM upper-locking hydraulic nuts operate at up to 21,756 psi and cover M33 through M150 bolt applications. Standard configurations are suitable for temperatures up to 100°C, with special seals available for higher-temperature service.

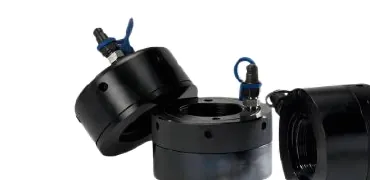

ToughTorq TTNM-M33 upper locking hydraulic nut
ModelBoltMax LoadWorking PressureOutside DiameterHeightStroke
TTNM-M33M3348,559 lbf21,756 psi2.91 in2.52 in0.24 in
TTNM-M36M3655,303 lbf21,756 psi3.15 in2.8 in0.16 in
TTNM-M39M3966,543 lbf21,756 psi3.43 in2.95 in0.16 in
TTNM-M42M4276,435 lbf21,756 psi3.7 in3.19 in0.24 in
TTNM-M45M4591,272 lbf21,756 psi3.98 in3.46 in0.24 in
TTNM-M48M48102,738 lbf21,756 psi4.21 in3.5 in0.31 in
TTNM-M52M52124,319 lbf21,756 psi4.61 in3.78 in0.31 in
TTNM-M56M56147,475 lbf21,756 psi5.04 in3.94 in0.31 in
TTNM-M64M64183,669 lbf21,756 psi5.67 in4.45 in0.39 in
TTNM-M68M68226,607 lbf21,756 psi6.18 in4.69 in0.39 in
TTNM-M72M72236,274 lbf21,756 psi6.42 in4.84 in0.47 in
TTNM-M80M80327,996 lbf21,756 psi7.36 in5.59 in0.47 in
TTNM-M90M90388,245 lbf21,756 psi8.15 in6.22 in0.47 in
TTNM-M95M95441,750 lbf21,756 psi8.62 in6.54 in0.47 in
TTNM-M100M100501,998 lbf21,756 psi9.21 in6.77 in0.59 in
TTNM-M110M110604,286 lbf21,756 psi10.04 in7.24 in0.59 in
TTNM-M125M125817,405 lbf21,756 psi11.65 in8.27 in0.59 in
TTNM-M140M140982,640 lbf21,756 psi12.91 in9.37 in0.59 in
TTNM-M150M1501,184,294 lbf21,756 psi14.02 in10.04 in0.71 in
Anti-corrosion protective cap
Spherical washers available for non-square interfaces
Special sealing available above 100°C

Bearing Assembly Series

Controlled bearing installation and removal

TTHMV hydraulic nuts thread onto the shaft or sleeve and use ultra-high hydraulic pressure to move bearings and other interference-fit components. Published operating pressure is 10,153–21,756 psi, and every model is equipped for connection to a compatible ultra-high-pressure hydraulic pump.

ToughTorq TTHMV-10E bearing assembly hydraulic nut
ModelThreadDd1d2HeightStrokeEffective AreaWeight
TTHMV-10EM50x1.54.49 in1.99 in4.09 in1.5 in0.2 in5.23 in²6 lb
TTHMV-12EM60x24.92 in2.38 in4.53 in1.5 in0.2 in6.57 in²6.2 lb
TTHMV-14EM70x25.31 in2.78 in5 in1.5 in0.2 in7.3 in²7.1 lb
TTHMV-16EM80x25.75 in3.17 in5.39 in1.5 in0.2 in8.03 in²8.2 lb
TTHMV-18EM90x26.14 in3.56 in5.79 in1.5 in0.2 in8.76 in²8.8 lb
TTHMV-20EM100x26.54 in3.96 in6.22 in1.5 in0.2 in9.28 in²9.7 lb
TTHMV-22EM110x27.01 in4.35 in6.65 in1.5 in0.2 in9.74 in²10.9 lb
TTHMV-24EM120x27.4 in4.74 in7.05 in1.5 in0.2 in13.28 in²11.6 lb
TTHMV-26EM130x27.8 in5.14 in7.48 in1.5 in0.2 in11.11 in²12.5 lb
TTHMV-28EM140x28.19 in5.53 in7.87 in1.54 in0.2 in11.79 in²13.2 lb
TTHMV-30EM150x28.66 in5.93 in8.31 in1.54 in0.24 in11.99 in²14.6 lb
TTHMV-32EM160x39.13 in6.32 in8.82 in1.57 in0.24 in12.4 in²16.8 lb
TTHMV-34EM170x39.61 in6.71 in9.25 in1.61 in0.24 in13.44 in²18.5 lb
TTHMV-36EM180x310.08 in7.11 in9.72 in1.61 in0.24 in15.97 in²20.2 lb
TTHMV-38EM190x310.63 in7.52 in10.2 in1.65 in0.31 in14.36 in²23.1 lb
TTHMV-40EM200x311.1 in7.91 in10.67 in1.69 in0.31 in13.35 in²25.4 lb
TTHMV-42ETr210x411.57 in8.35 in11.1 in1.73 in0.35 in18.18 in²27.6 lb
TTHMV-44ETr220x412.05 in8.74 in11.54 in1.73 in0.35 in18.31 in²29.8 lb
TTHMV-46ETr230x412.52 in9.13 in12.01 in1.77 in0.35 in19.02 in²33.1 lb
TTHMV-50ETr250x413.46 in9.92 in12.95 in1.81 in0.39 in20.64 in²37.5 lb
TTHMV-56ETr280x414.96 in11.1 in14.29 in1.93 in0.47 in22.76 in²48.5 lb
TTHMV-60ETr300x415.91 in11.89 in15.2 in2.01 in0.51 in24.24 in²55.1 lb
TTHMV-68ETr340x517.72 in13.46 in16.93 in2.13 in0.55 in44.02 in²69.4 lb
TTHMV-76ETr380x519.61 in15.04 in18.74 in2.28 in0.63 in51.93 in²89.3 lb
TTHMV-80ETr400x520.55 in15.83 in19.65 in2.36 in0.67 in31.93 in²100.3 lb
TTHMV-100ETr500x525.04 in19.76 in23.98 in2.64 in0.75 in37.72 in²154.3 lb
TTHMV-142ETr710x734.25 in28.03 in33.07 in3.07 in0.98 in47.63 in²297.6 lb
TTHMV-160ETr800x737.99 in31.57 in36.85 in3.15 in0.98 in49.24 in²354.9 lb

Applications

Loading, locking, assembly, and removal

Critical bolted connections

Large structural joints

Heavy equipment

Industrial machinery

Bearing installation

Bearing removal

Shaft assembly

Rotating equipment maintenance

Selection & Compatibility

Match thread, pressure, and application geometry

✓Thread form and size must match the bolt, shaft, or sleeve.
✓Hydraulic power components must be rated for the operating pressure of the selected nut.
✓Application geometry, available clearance, and retained-load requirements determine whether an upper-locking or bearing-assembly hydraulic nut is appropriate.
Ultra-high-pressure pumps
Ultra-high-pressure hoses
Quick couplers
Pressure gauges
Spherical washers
Application-specific seals

Downloads

Hydraulic nut technical resources

Cutsheet

Hydraulic Nut Series Technical Sheet

View PDF →

Distribution

Find a ToughTorq distributor

Connect with the ToughTorq distribution network for hydraulic nut sizing, pump selection, and technical support.

Find a Distributor
