ToughTorq sockets and reaction equipment complete the mechanical connection between the torque tool, fastener, and reaction point. The published socket range covers 3/4-inch, 1-inch, and 1-1/2-inch square-drive hydraulic wrench applications, while reaction equipment can be selected or customized around tool position and available geometry.

View Socket DataDownloadsReaction GuidanceFind a Distributor

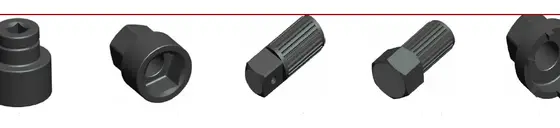

ToughTorq socket, hexagon socket, square drive, hexagonal drive, and castle socket configurations

Manufacturer System

Socket and drive configurations

The ToughTorq socket system includes standard sockets, hexagon sockets, square drives, hexagonal drives, and castle sockets. The published model table below covers the standard square-drive socket range for ToughTorq hydraulic torque wrenches.

ToughTorq socket, hexagon socket, square drive, hexagonal drive, and castle socket configurations

Socket

Hexagon Socket

Square Drive

Hexagonal Drive

Castle Socket

Technical Data

Torque wrench socket specifications

Socket selection is tied directly to square-drive size, compatible wrench model, fastener diameter, nut A/F size, and available clearance. Dimensions are converted to inches from the manufacturer source table.

3/4" Drive Socket Range

Published socket range for the TT1XTA square-drive hydraulic torque wrench.

ModelCompatible WrenchSquare DriveBolt DiameterNut A/FL1L2D1D2
TX-75-24TT1XTA3/4 inM1624 mm0.94 in2.13 in1.26 in1.57 in1.57 in
TX-75-27TT1XTA3/4 inM1827 mm1.06 in2.13 in1.26 in1.65 in1.65 in
TX-75-30TT1XTA3/4 inM2030 mm1.18 in2.13 in1.3 in1.81 in1.73 in
TX-75-34TT1XTA3/4 inM2234 mm1.34 in2.13 in1.26 in1.89 in1.73 in
TX-75-36TT1XTA3/4 inM2436 mm1.42 in2.24 in1.26 in2.09 in1.73 in
TX-75-41TT1XTA3/4 inM2741 mm1.61 in2.28 in1.3 in2.36 in1.73 in
TX-75-46TT1XTA3/4 inM3046 mm1.81 in2.48 in1.5 in2.6 in1.73 in
TX-75-50TT1XTA3/4 inM3350 mm1.97 in2.56 in1.57 in2.8 in1.73 in
TX-75-55TT1XTA3/4 inM3655 mm2.17 in2.76 in1.77 in3.03 in2.13 in

1" Drive Socket Range

Published socket range for the TT3XTA square-drive hydraulic torque wrench.

ModelCompatible WrenchSquare DriveBolt DiameterNut A/FL1L2D1D2
TX-100-30TT3XTA1 inM2030 mm1.18 in2.32 in1.26 in2.13 in2.13 in
TX-100-34TT3XTA1 inM2234 mm1.34 in2.32 in1.26 in2.28 in2.28 in
TX-100-36TT3XTA1 inM2436 mm1.42 in2.44 in1.26 in2.32 in2.32 in
TX-100-41TT3XTA1 inM2741 mm1.61 in2.56 in1.5 in2.64 in2.13 in
TX-100-46TT3XTA1 inM3046 mm1.81 in2.56 in1.5 in2.91 in2.13 in
TX-100-50TT3XTA1 inM3350 mm1.97 in2.76 in1.69 in3.11 in2.36 in
TX-100-55TT3XTA1 inM3655 mm2.17 in3.15 in2.05 in3.31 in2.36 in
TX-100-60TT3XTA1 inM3960 mm2.36 in3.35 in2.24 in3.5 in2.36 in
TX-100-65TT3XTA1 inM4265 mm2.56 in3.35 in2.28 in3.86 in2.76 in
TX-100-70TT3XTA1 inM4570 mm2.76 in3.54 in2.44 in4.09 in2.76 in
TX-100-75TT3XTA1 inM4875 mm2.95 in3.74 in2.56 in4.25 in2.76 in

1-1/2" Drive Socket Range

Published socket range shared across the TT5XTA, TT8XTA, and TT10XTA square-drive hydraulic torque wrench families.

ModelCompatible WrenchSquare DriveBolt DiameterNut A/FL1L2D1D2
TX-150-36TT5XTA / TT8XTA / TT10XTA1-1/2 inM2436 mm1.42 in3.35 in1.73 in2.91 in2.91 in
TX-150-41TT5XTA / TT8XTA / TT10XTA1-1/2 inM2741 mm1.61 in3.35 in1.73 in2.91 in2.91 in
TX-150-46TT5XTA / TT8XTA / TT10XTA1-1/2 inM3046 mm1.81 in3.35 in1.73 in2.91 in2.91 in
TX-150-50TT5XTA / TT8XTA / TT10XTA1-1/2 inM3350 mm1.97 in3.54 in1.77 in3.11 in3.11 in
TX-150-55TT5XTA / TT8XTA / TT10XTA1-1/2 inM3655 mm2.17 in3.54 in1.77 in3.31 in3.31 in
TX-150-60TT5XTA / TT8XTA / TT10XTA1-1/2 inM3960 mm2.36 in3.94 in1.77 in3.7 in3.7 in
TX-150-65TT5XTA / TT8XTA / TT10XTA1-1/2 inM4265 mm2.56 in3.94 in1.77 in3.86 in3.15 in
TX-150-70TT5XTA / TT8XTA / TT10XTA1-1/2 inM4570 mm2.76 in4.13 in1.97 in4.09 in3.15 in
TX-150-75TT5XTA / TT8XTA / TT10XTA1-1/2 inM4875 mm2.95 in4.33 in1.97 in4.65 in3.35 in
TX-150-80TT5XTA / TT8XTA / TT10XTA1-1/2 inM5280 mm3.15 in4.53 in2.17 in4.65 in3.54 in
TX-150-85TT5XTA / TT8XTA / TT10XTA1-1/2 inM5685 mm3.35 in4.92 in2.36 in5.04 in3.54 in
TX-150-90TT5XTA / TT8XTA / TT10XTA1-1/2 inM6090 mm3.54 in4.92 in2.36 in5.47 in3.54 in
TX-150-95TT5XTA / TT8XTA / TT10XTA1-1/2 inM6495 mm3.74 in5.12 in2.56 in5.47 in3.54 in
TX-150-100TT5XTA / TT8XTA / TT10XTA1-1/2 inM68100 mm3.94 in5.31 in2.76 in5.67 in3.54 in
TX-150-105TT5XTA / TT8XTA / TT10XTA1-1/2 inM72105 mm4.13 in5.31 in2.76 in5.87 in3.54 in
TX-150-110TT5XTA / TT8XTA / TT10XTA1-1/2 inM76110 mm4.33 in5.31 in2.76 in6.22 in3.54 in
TX-150-115TT5XTA / TT8XTA / TT10XTA1-1/2 inM80115 mm4.53 in5.31 in2.76 in6.26 in3.54 in
TX-150-120TT5XTA / TT8XTA / TT10XTA1-1/2 inM85120 mm4.72 in5.31 in2.76 in6.61 in3.74 in
TX-150-130TT5XTA / TT8XTA / TT10XTA1-1/2 inM90130 mm5.12 in6.1 in3.66 in7.44 in3.54 in

Reaction Control

Reaction equipment is application-specific

ToughTorq square-drive hydraulic torque wrenches use a reaction arm that can be positioned through 360° on the tool support. Reaction equipment can also be customized where the available structure, tool position, or fastener geometry cannot be handled with the standard configuration.

Reaction Selection

Torque tool model

Required torque

Fastener position

Available reaction point

Working clearance

Surrounding equipment

Reaction distance

Application geometry

Final reaction geometry should be selected around the actual application rather than from a generic arm category alone.

Compatibility

Match the complete bolting interface

✓

Published socket-to-wrench compatibility is maintained at model level in the canonical data.

✓

Reaction-arm selection depends on the torque tool, reaction point, fastener position, and available clearance.

✓

Custom reaction arms may be required where standard reaction geometry cannot safely engage the application.
